Standalone Aspire Dashboard Setup for Distributed .NET Applications

You've built a distributed .NET application. Multiple services, databases, message queues. Now something's slow, and you need to figure out why.

The Aspire Dashboard runs perfectly as a standalone container, giving you distributed tracing, structured logs, and real-time metrics without the full orchestration framework.

While Aspire's orchestration is incredibly powerful for managing distributed applications, sometimes you just need the observability piece. Maybe you're already using Docker Compose or Kubernetes. Maybe you're debugging an existing system. The standalone dashboard gives you valuable telemetry visualization with minimal setup.

Let's get it running in under 5 minutes.

Why Run the Aspire Dashboard Standalone?

Most teams already have their deployment story figured out. Docker Compose, Kubernetes, or some platform-specific orchestration. You don't want to rewrite everything just to get observability.

The standalone Aspire Dashboard hits a sweet spot for development:

• Drop-in observability - Just add a container to your existing setup
• Full OpenTelemetry support - Works with any OTLP-compatible application
• Developer-friendly - Designed for local development and debugging
• Immediate value - See traces, logs, and metrics within minutes

One caveat: it's in-memory only. Perfect for development and debugging, not for production. For production, you'll want something like Jaeger, Prometheus, or a commercial APM solution.

But for understanding what your code is doing right now? It's exactly what you need.

Step 1: Add the Dashboard Container

Drop this into your docker-compose.yml:

aspire-dashboard:
  container_name: aspire-dashboard
  image: mcr.microsoft.com/dotnet/aspire-dashboard:9.0
  ports:
    - 18888:18888

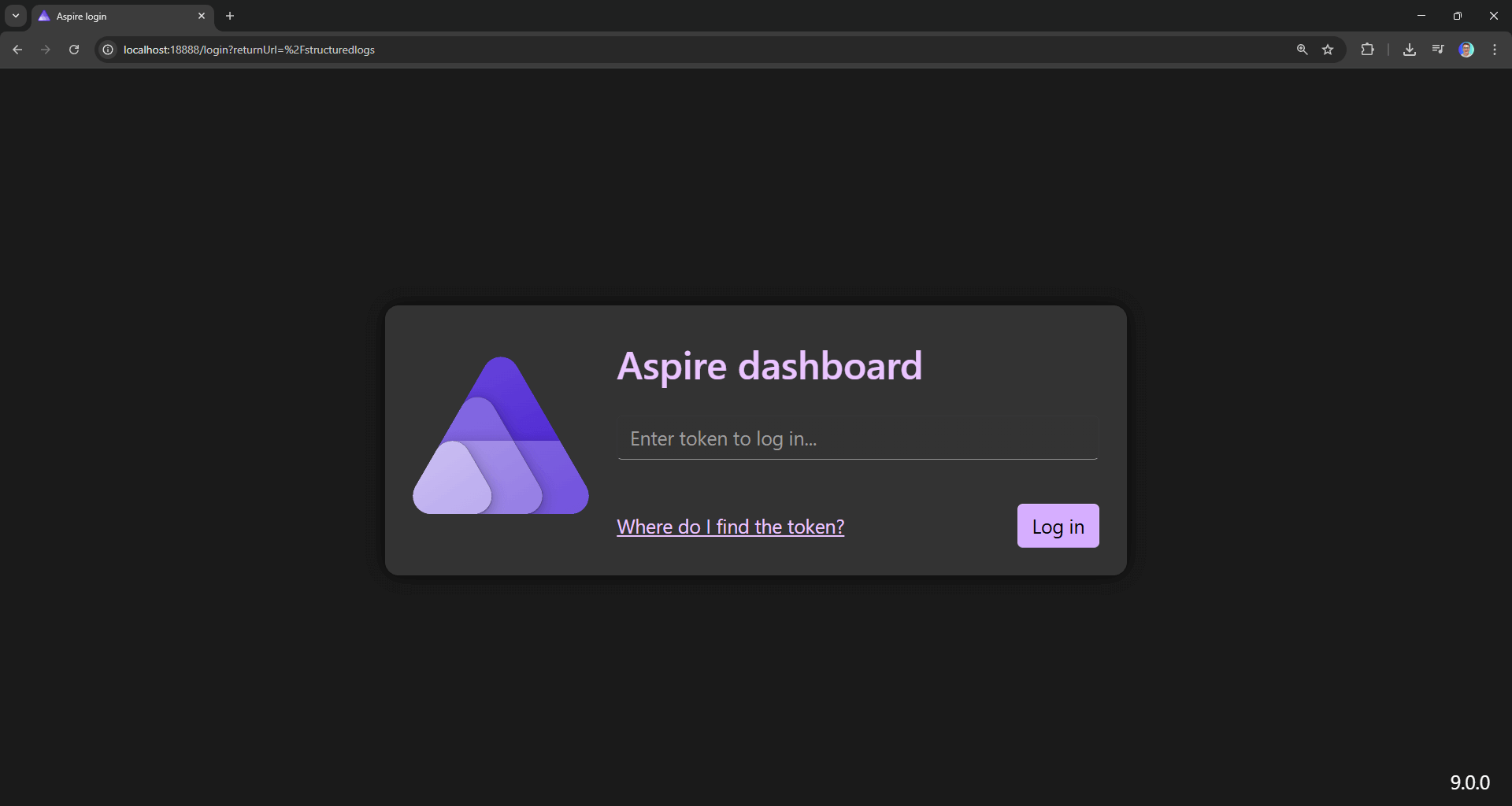

That's it. The dashboard is running. Navigate to http://localhost:18888 and... you'll need a token.

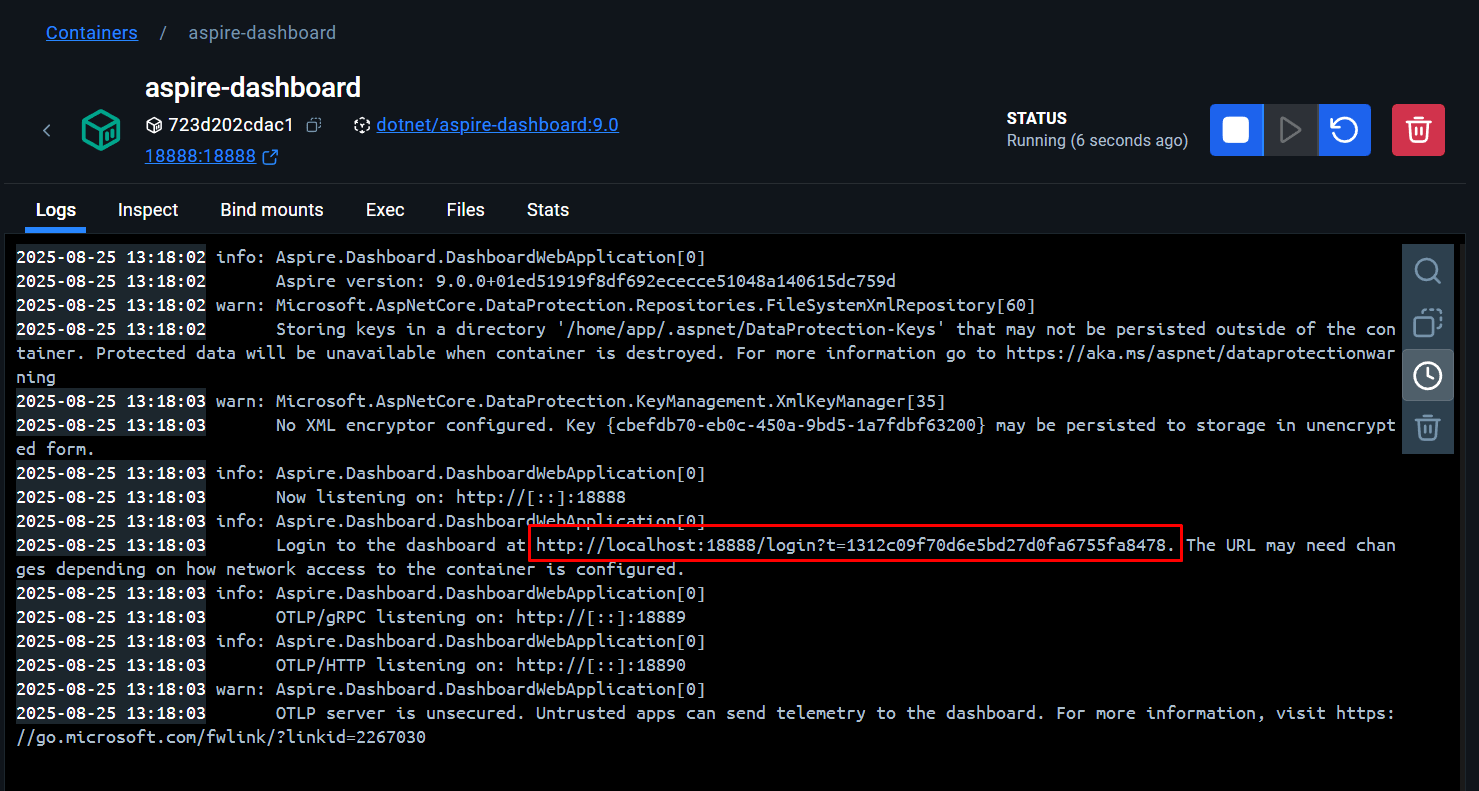

Check the container logs for the login link. The dashboard generates a unique authentication token on startup:

Click that link, and you're in. Empty for now, but not for long.

Step 2: Wire Up Your .NET Services

Your services need to know where to send their telemetry. Add these environment variables to your API containers:

users.api:
  image: ${DOCKER_REGISTRY-}usersapi
  build:
    context: .
    dockerfile: Users.Api/Dockerfile
  ports:
    - 5100:5100
    - 5101:5101
  environment:
    - OTEL_EXPORTER_OTLP_ENDPOINT=http://aspire-dashboard:18889
    - OTEL_EXPORTER_OTLP_PROTOCOL=grpc
  depends_on:
    - users.database

Notice port 18889? That's the OTLP ingestion endpoint. The dashboard listens on 18888 for the UI, 18889 for telemetry data.

Step 3: Configure OpenTelemetry in Your Code

Install the necessary OpenTelemetry packages:

<PackageReference Include="Npgsql.OpenTelemetry" Version="9.0.3" />
<PackageReference Include="OpenTelemetry.Exporter.OpenTelemetryProtocol" Version="1.12.0" />
<PackageReference Include="OpenTelemetry.Extensions.Hosting" Version="1.12.0" />
<PackageReference Include="OpenTelemetry.Instrumentation.AspNetCore" Version="1.12.0" />
<PackageReference Include="OpenTelemetry.Instrumentation.Http" Version="1.12.0" />

Then configure OpenTelemetry in your Program.cs:

builder.Services.AddOpenTelemetry()
    .ConfigureResource(resource => resource.AddService(builder.Environment.ApplicationName))
    .WithTracing(tracing => tracing
        .AddHttpClientInstrumentation()
        .AddAspNetCoreInstrumentation()
        .AddNpgsql())
    .WithMetrics(metrics => metrics
        .AddHttpClientInstrumentation()
        .AddAspNetCoreInstrumentation());

builder.Logging.AddOpenTelemetry(options =>
{
    options.IncludeScopes = true;
    options.IncludeFormattedMessage = true;
});

builder.Services.AddOpenTelemetry().UseOtlpExporter();

This configuration:

• Traces HTTP calls, ASP.NET Core requests, and database queries
• Collects metrics on request duration, response codes, and throughput
• Structured logging with full context and formatted messages
• Exports everything to the Aspire Dashboard via OTLP

The UseOtlpExporter() method automatically picks up the OTEL_EXPORTER_OTLP_ENDPOINT environment variable you configured earlier.

What You Get

Start your application and make a few requests. The dashboard immediately lights up with data.

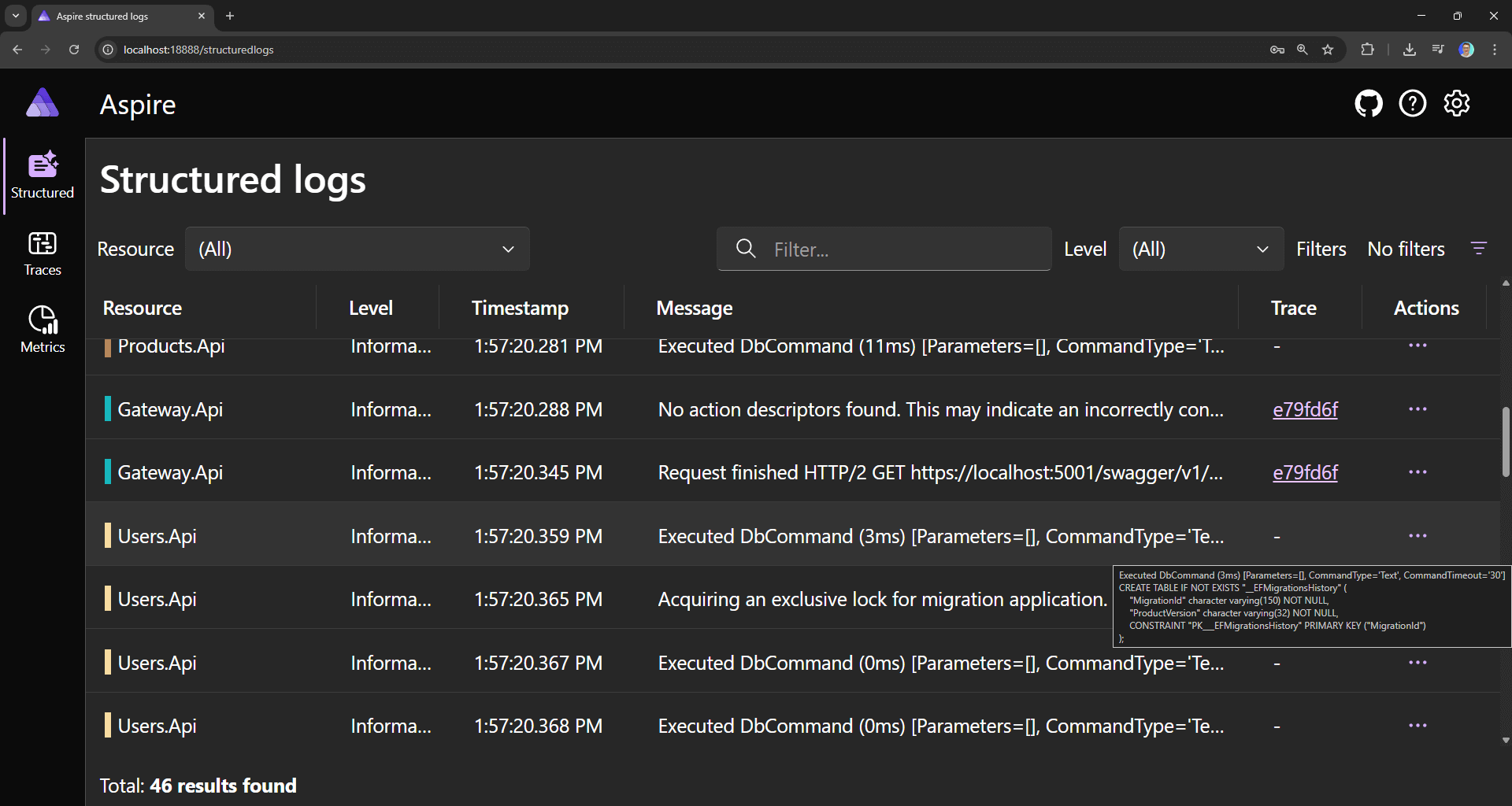

Structured Logs

Every log entry includes full context: trace IDs, request paths, user identities. Click any log to see the complete structured data.

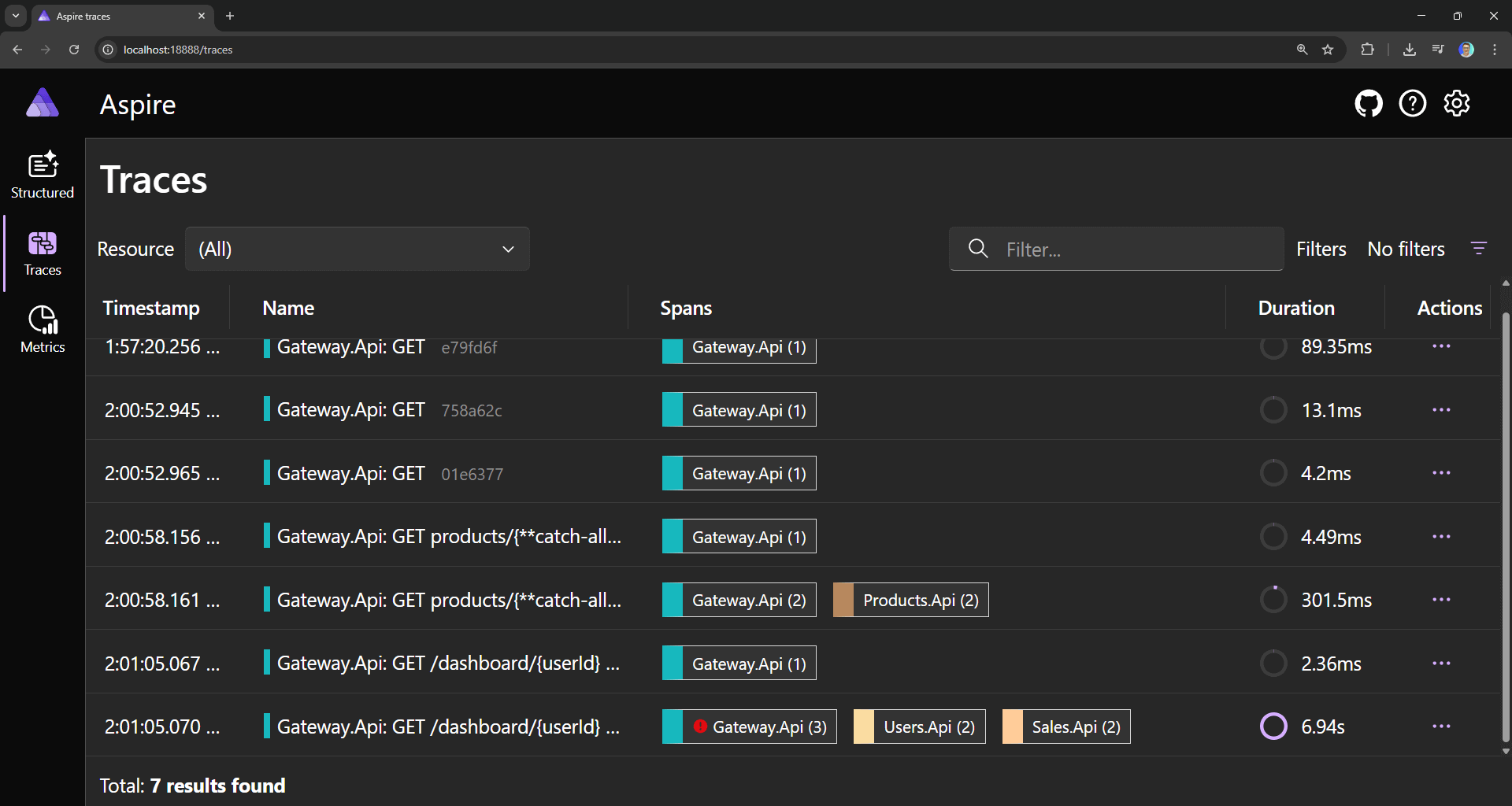

Distributed Traces

See the complete request flow across all your services. Which database query is slow? Which HTTP call is failing? The trace view shows you exactly where time is spent.

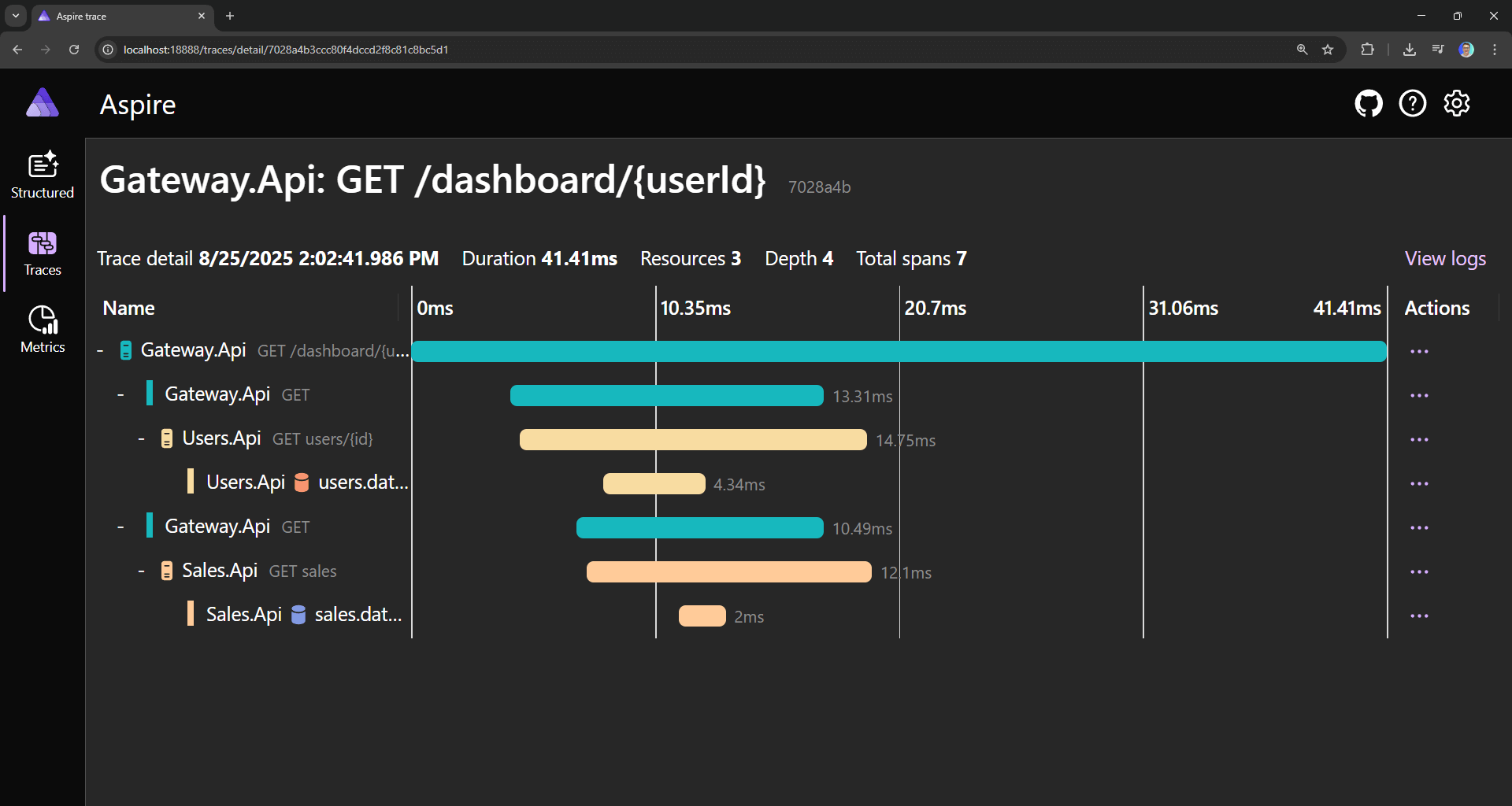

You can click into a trace to see the individual spans and any metadata associated with them.

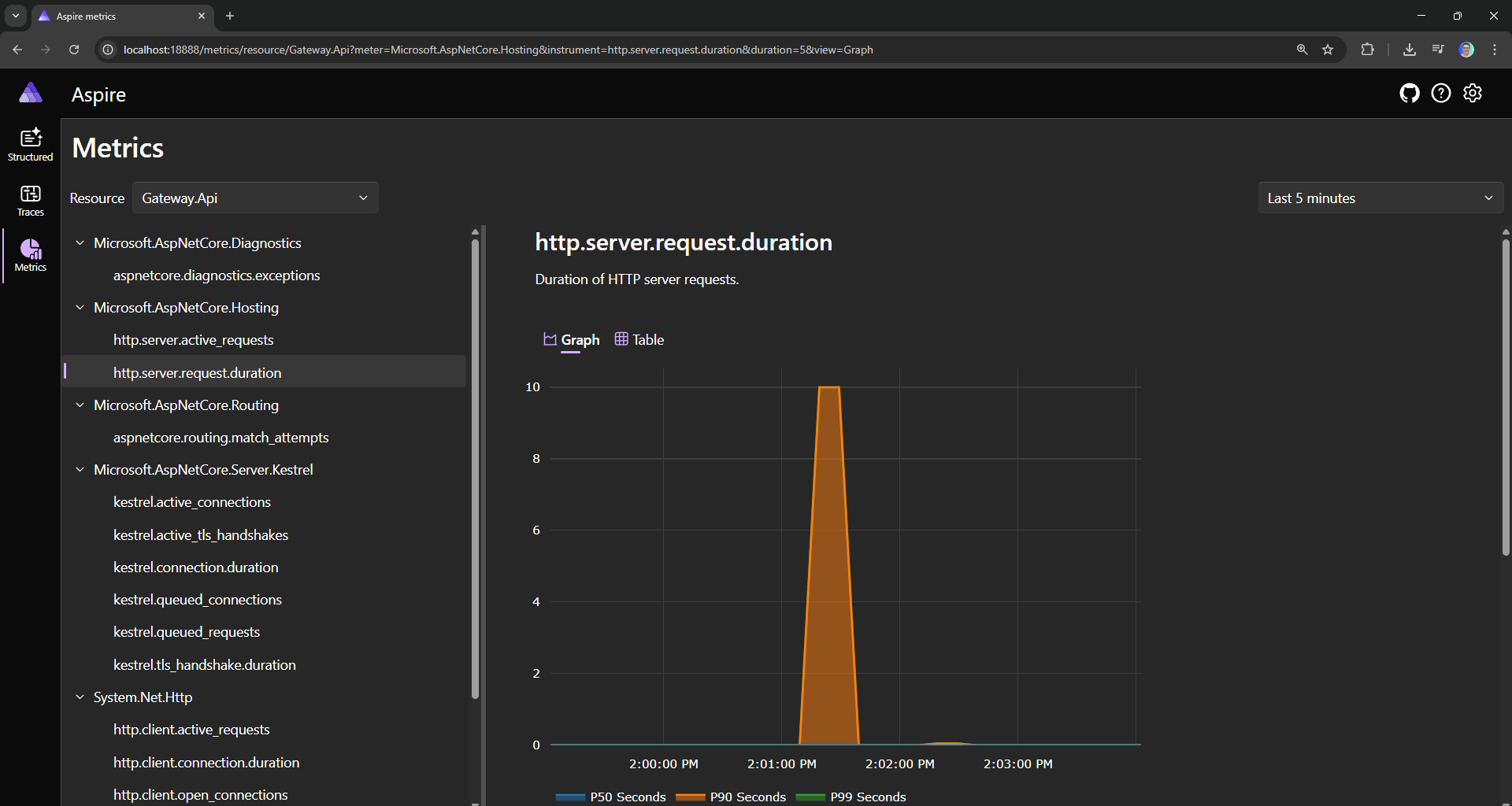

Real-Time Metrics

Response times, error rates, throughput, all updating live. Perfect for load testing or understanding traffic patterns.

Summary

The standalone Aspire Dashboard is perfect for local development and debugging. Spin up your stack, make requests, and instantly see what's happening across all your services. Find bottlenecks in the trace view, correlate logs with requests, watch metrics update in real-time.

Remember: this is for development only since data is in-memory and disappears on restart. That last part might be fixed soon, according to the Aspire roadmap. For production, you'll want proper solutions like Jaeger for tracing, Prometheus for metrics, or a commercial APM like Application Insights.

But for that immediate "what is my code actually doing?" question during development? You've got professional observability in under 5 minutes.

Just add the container, configure OpenTelemetry, and start debugging like a pro.
