Monitoring .NET Applications with OpenTelemetry and Grafana

Your .NET application is running in production, but you're flying blind.

When something breaks, you're stuck digging through logs, guessing at performance bottlenecks, and trying to piece together what actually happened across your distributed system.

That ends today.

Grafana is a complete observability platform that unifies metrics, logs, and traces in one place.

With Grafana, you get:

• Unified dashboards that combine metrics, logs, and traces
• Advanced alerting that actually works when things go wrong
• Deep trace analysis to understand request flows across services
• Log correlation that connects your traces to the exact log entries that matter

Grafana Cloud makes this even easier. No infrastructure to manage, automatic scaling, and built-in integrations with OpenTelemetry. There's a generous free tier that allows you to get started without any upfront costs.

When you combine Grafana with OpenTelemetry, you get vendor-neutral observability that actually delivers insights instead of just pretty charts.

Setting Up OpenTelemetry in .NET

First, install the core OpenTelemetry packages:

Install-Package OpenTelemetry.Extensions.Hosting
Install-Package OpenTelemetry.Exporter.OpenTelemetryProtocol
Install-Package OpenTelemetry.Instrumentation.AspNetCore
Install-Package OpenTelemetry.Instrumentation.Http

You can also add instrumentation for other libraries as needed:

Install-Package OpenTelemetry.Instrumentation.EntityFrameworkCore
Install-Package OpenTelemetry.Instrumentation.StackExchangeRedis
Install-Package Npgsql.OpenTelemetry

Configure OpenTelemetry in your Program.cs:

var builder = WebApplication.CreateBuilder(args);

builder.Services
    .AddOpenTelemetry()
    .ConfigureResource(resource => resource.AddService(serviceName))
    .WithTracing(tracing =>
    {
        tracing
            .AddAspNetCoreInstrumentation()
            .AddHttpClientInstrumentation()
            .AddEntityFrameworkCoreInstrumentation()
            .AddRedisInstrumentation()
            .AddNpgsql();

        tracing.AddOtlpExporter();
    });

builder.Logging.AddOpenTelemetry(logging =>
{
    logging.IncludeScopes = true;
    logging.IncludeFormattedMessage = true;

    logging.AddOtlpExporter();
});

var app = builder.Build();

// Your app configuration...

app.Run();

This configuration:

• Sets up tracing with OpenTelemetry
• Sets up automatic instrumentation for ASP.NET Core and HTTP requests
• Adds Entity Framework Core and Redis instrumentation
• Configures PostgreSQL instrumentation if you're using Npgsql
• Configures OTLP export for traces and logs (we can also add metrics later)

Configuring OTLP Export to Grafana Cloud

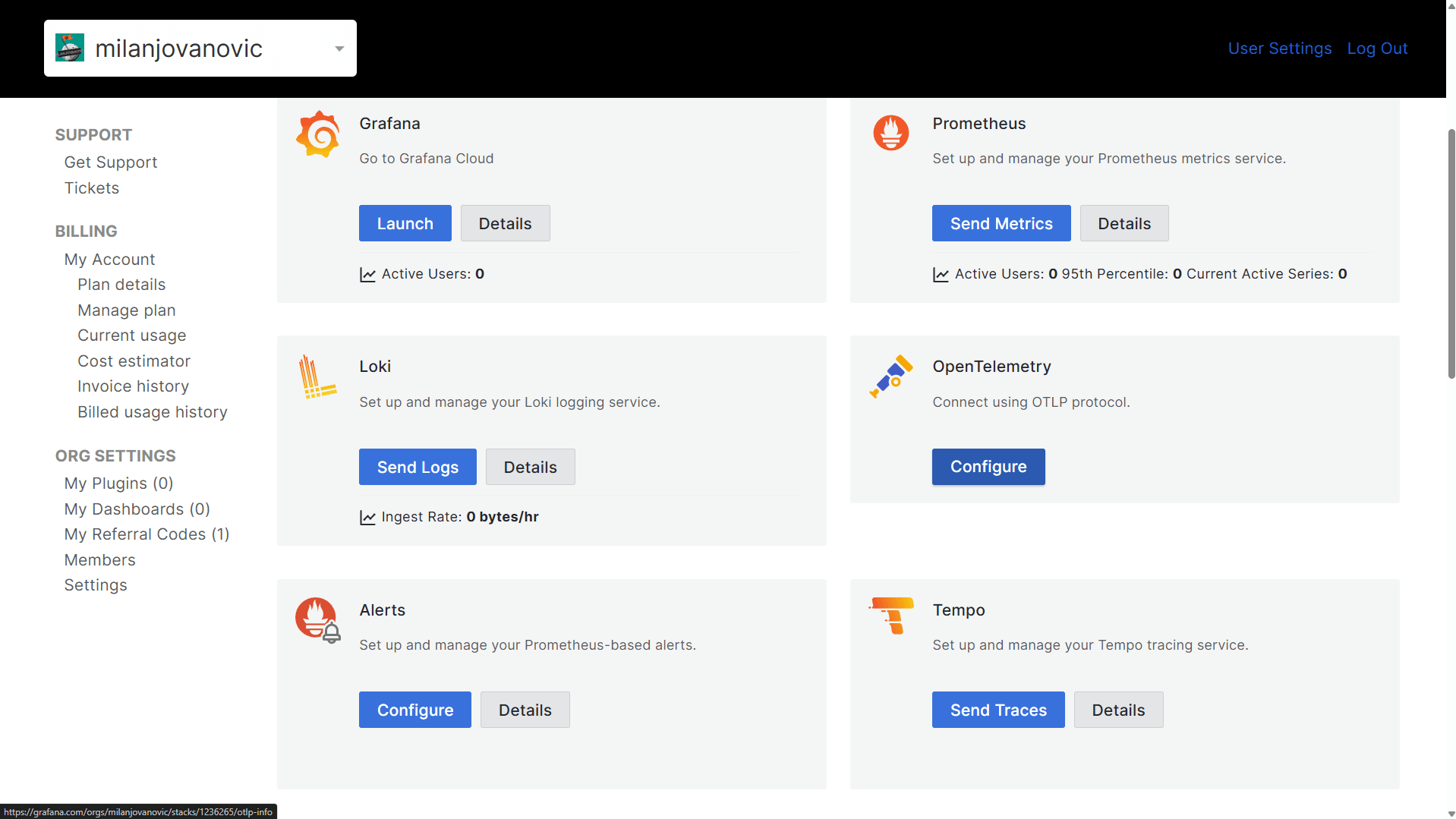

Get your Grafana Cloud credentials:

1. Log into Grafana Cloud

2. Go to My Account → Stack Details

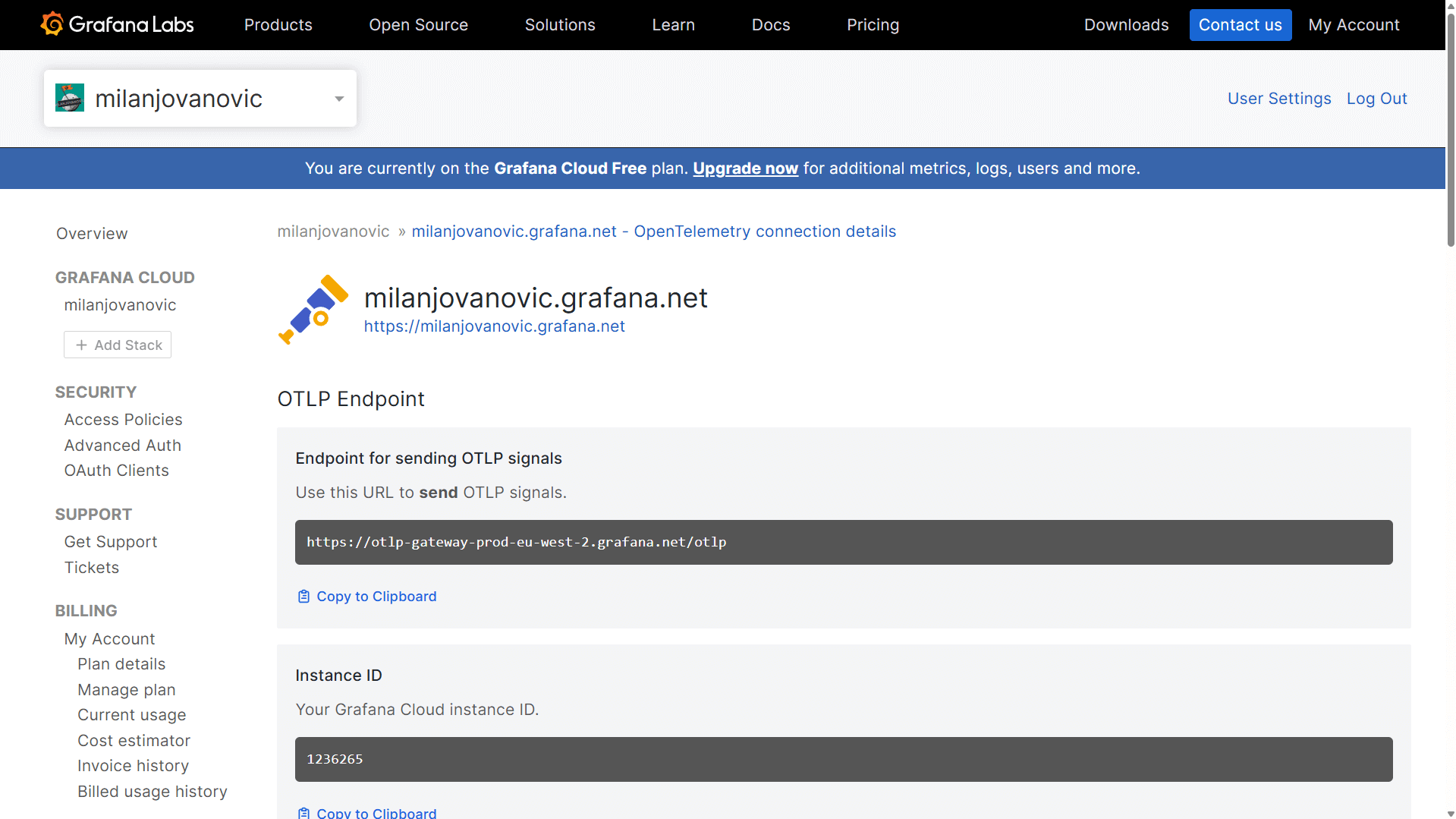

3. Find your OTLP endpoint (looks like https://otlp-gateway-prod-eu-west-2.grafana.net/otlp)

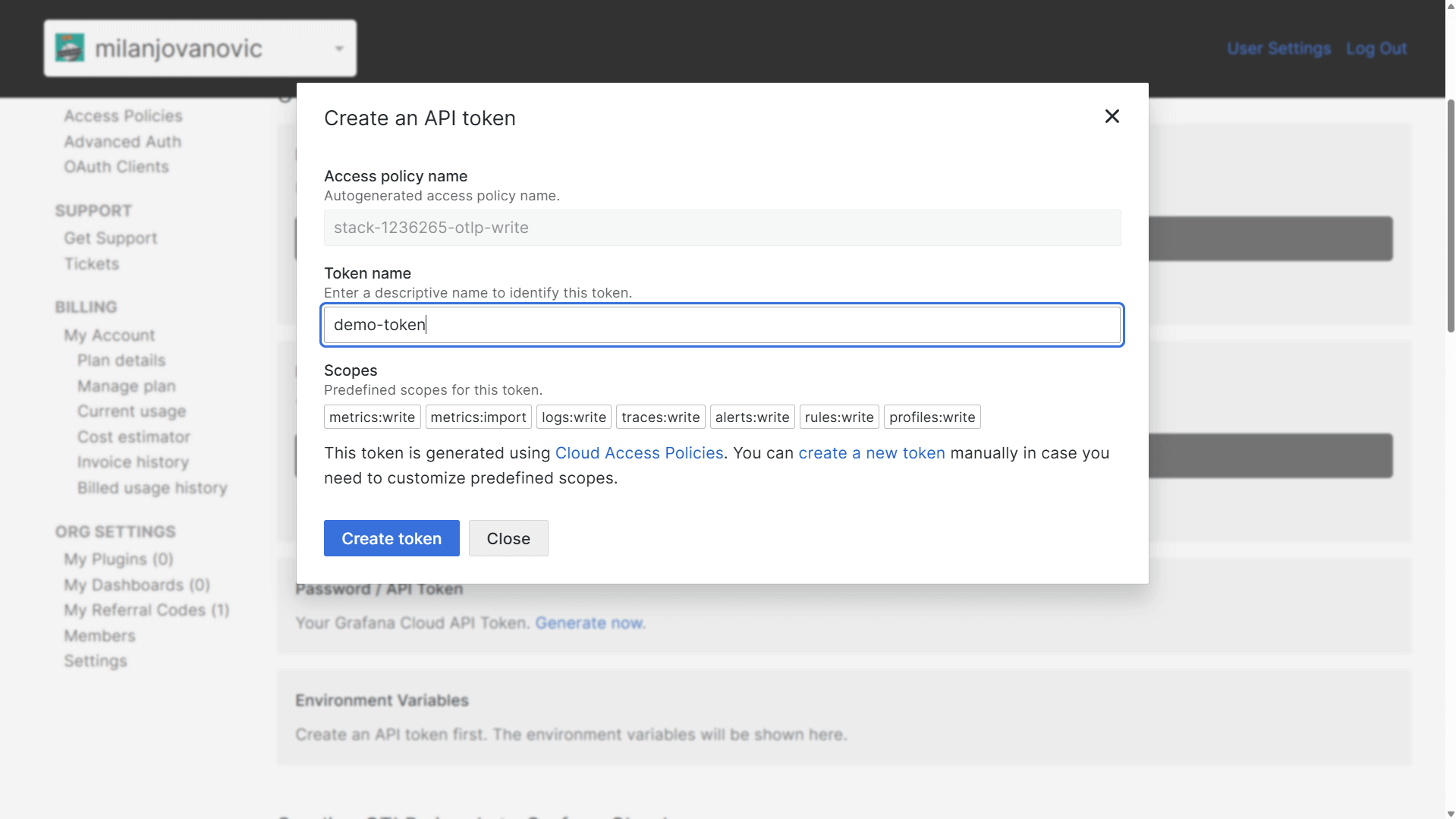

4. Generate an API token with permissions

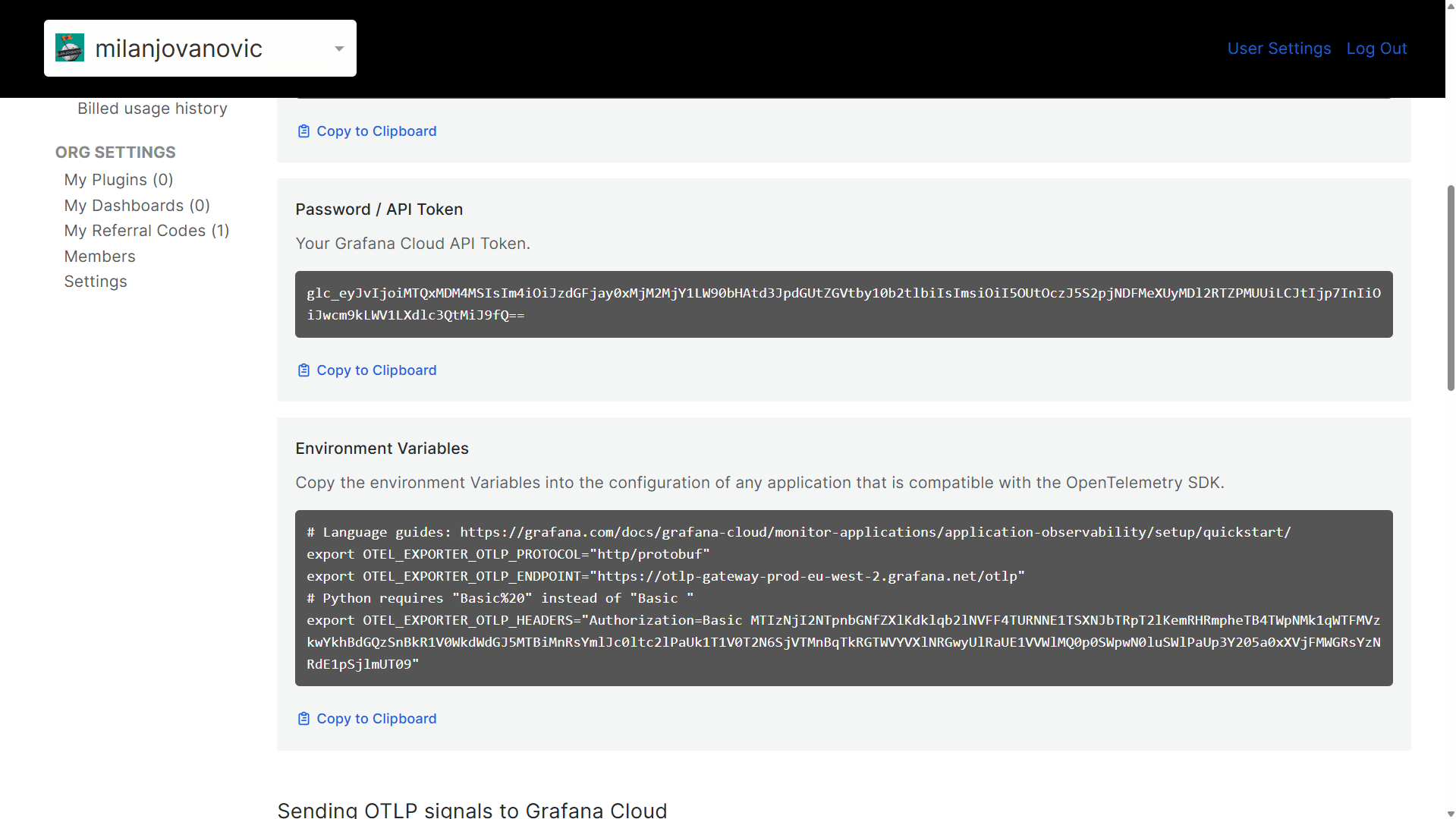

You should also see the environment variables you can use to configure OpenTelemetry:

Configure the OTLP exporter in your appsettings.json:

{
  "OTEL_EXPORTER_OTLP_ENDPOINT": "https://otlp-gateway-prod-eu-west-2.grafana.net/otlp",
  "OTEL_EXPORTER_OTLP_PROTOCOL": "http/protobuf",
  "OTEL_EXPORTER_OTLP_HEADERS": "Authorization=Basic <your-base64-encoded-token>"
}

You can also set these as environment variables in your hosting environment.

Viewing and Analyzing Data in Grafana

Start your application and generate some traffic. Now head to your Grafana Cloud instance.

Traces

If everything is set up correctly, you should see traces from your application in the Traces section.

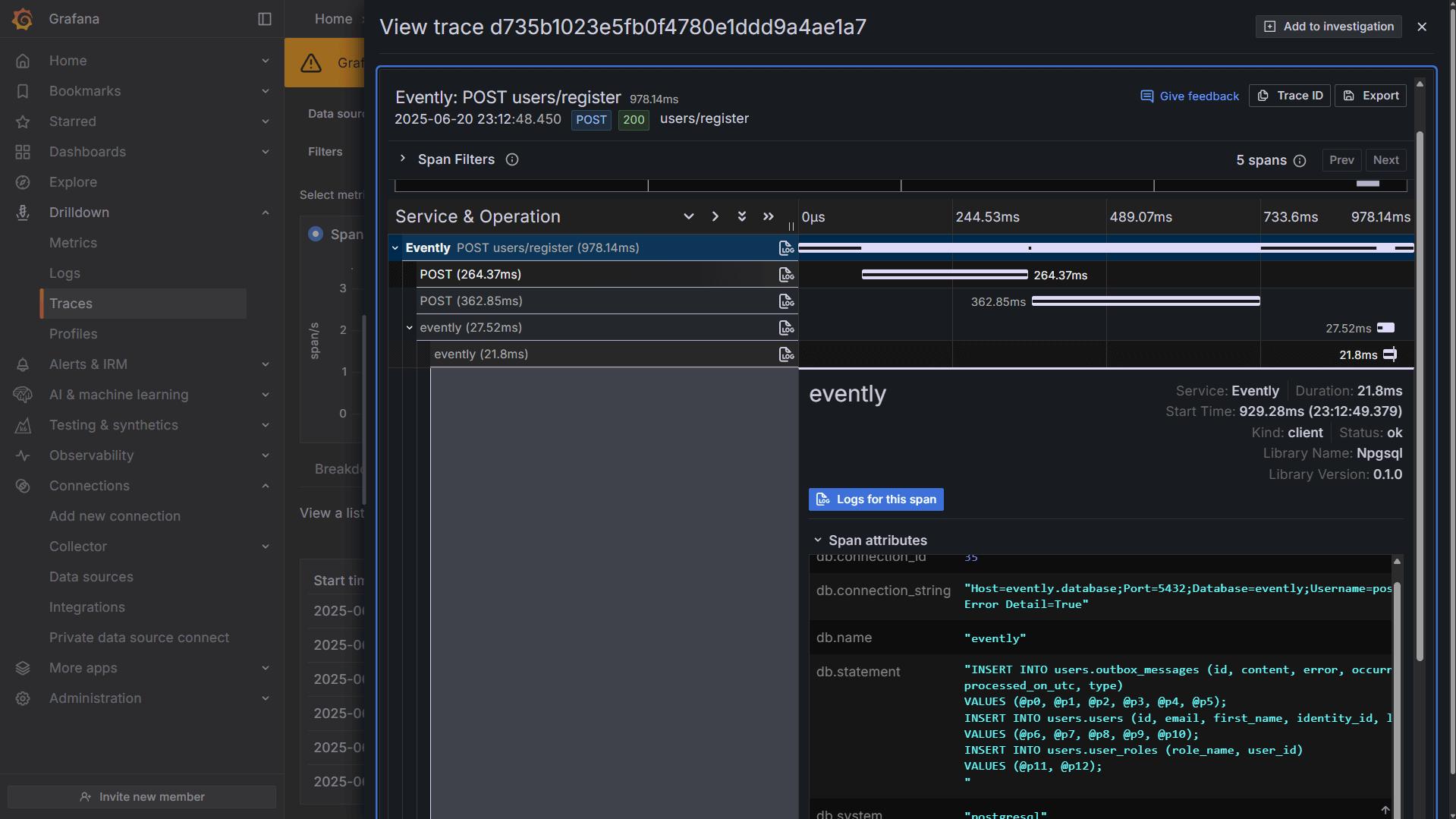

Here's an example of a trace view in Grafana Cloud. It's a POST users/register request that contains multiple spans:

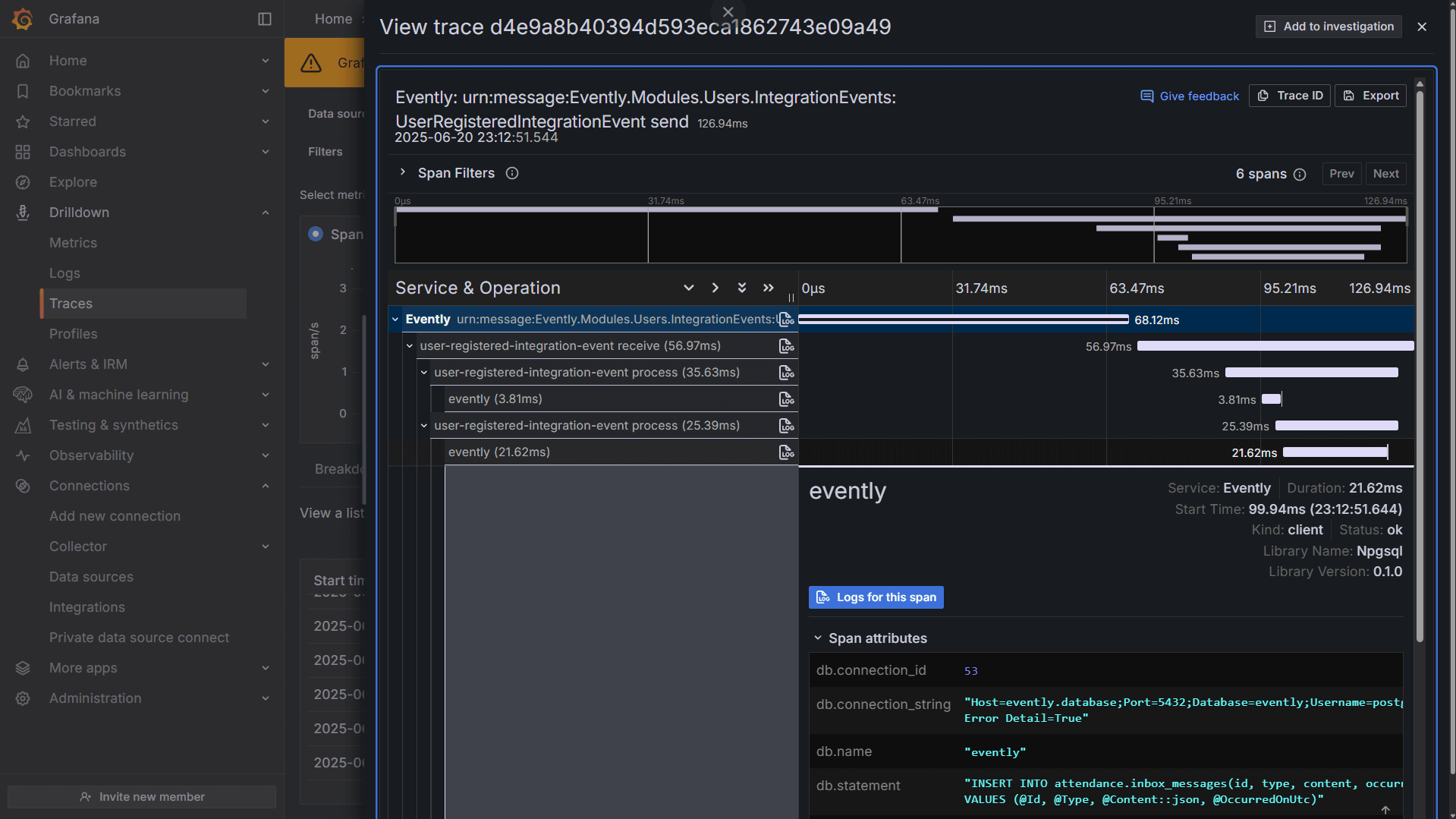

Here's another example of a trace that includes messages sent to a message broker (like RabbitMQ or Kafka).

Logs

You can also view logs in Grafana Cloud.

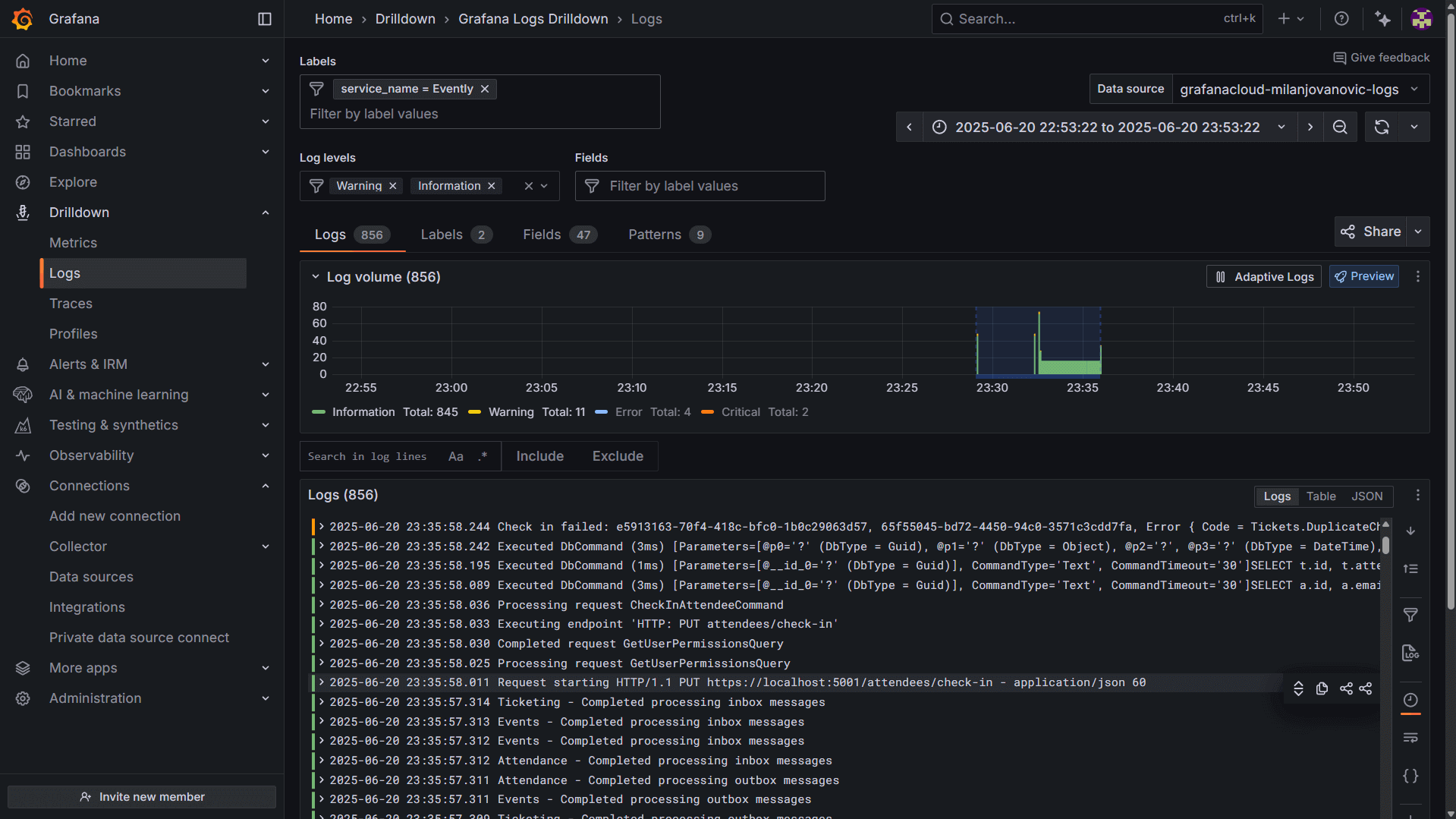

Here's an example of a log view that shows multiple log entries for our application.

You can drill down into individual log entries, filter by severity, and search for specific terms.

OpenTelemetry automatically correlates your logs with traces. In the trace detail view, click Logs to see all log entries that occurred during that request.

Your logs will include trace and span IDs.

Conclusion

You now have full observability for your .NET application.

When something goes wrong in production, you won't be guessing anymore. You'll see exactly which requests were slow, what errors occurred, and how they propagated through your system.

Grafana gives you the dashboards and alerting to catch problems before users do. OpenTelemetry gives you the detailed traces to understand exactly what happened.

This setup scales from a single service to hundreds of microservices without changing your instrumentation code.

Ready to take your observability further?

This article showed you the basics, but modern applications need advanced patterns like distributed tracing across event-driven architectures, custom instrumentation strategies, and observability-driven development practices.

I cover all of this in-depth in my Modular Monolith Architecture course, where you'll learn how to implement OpenTelemetry across complex, event-driven systems that actually scale in production.
